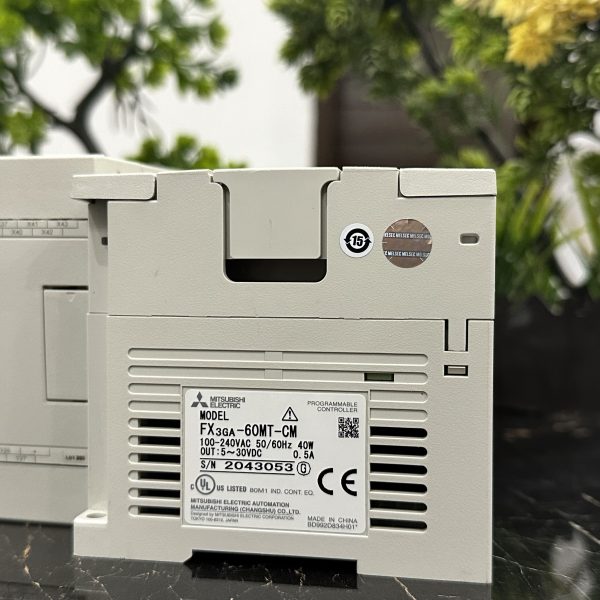

FX3GA-60MT-CM | MITSUBISHI PLC FX3GA-60MT-CM (used like new )

MITSUBISHI FX3GA-60MT-CM Product information and technical parameters： Brand: MITSUBISHI Name: PLC Model: FX3GA-60MT-CM Input and output points: 60 points. Power supply: AC100-240V. Input points: 36 points. Output points: 24 points. Output form: transistor output (drain). Power consumption: 40W. Weight: 0.85KG. Outline dimension: 175x90x86mm. EEPROM memory cartridge with program transfer function. Third generation standard model. Easy to use integrated models and flexible scalability. Condensed convenience of using the usual FX3 series. Its high price by the most suitable for small scale control. High speed operation. Basic instructions: 0.21 s/ instruction. Application instruction: 0.5 s/ instruction. Large capacity memory. Built in program memory 32000 steps. Auxiliary relay: 7680 points. Timer: 320 points. Counter: 235. Data register: 8000. Extended register: 24000 point. Extended file register: 24000. A free combination of PLC. FX3G basic unit: 14/24/40/60 point. FX3GA is a compact PLC, simple design and with the basic functions of the FX3 series. Through the strengthening of the built-in function and flexible expansion, expanded in various fields of application. Third generation standard model. High flexibility. Suitable for small scale control of high cost. Control points to 128 points, the use of CC-Link remote I/O can control the maximum 256 points.  Max input / output points: 30 points. Power supply voltage: DC24V. Input points: 16 points. Output points: 14 points. Output type: relay. Power consumption (W): 21. Weight (kg):0.45. Size (WxHxD) mm:100x90x75. Positioning and pulse output functions: a PLC cell can output 2 point 100KHz pulses at the same time MITSUBISHI FX3GA-60MT-CM.  PLC is equipped with 7 special positioning instructions, Including zero return, absolute or relative address expression and special pulse output control FX3GA-60MT-CM Host has 10 points (6I/4O), 14 points (8I/6O), 20 points (12I/8O), 30 points (16I/14O) of 4 types. This type of PLC is mainly used in all of the digital input, digital output control point of the device. Can be directly connected to the 220V city power, built-in 8K step EEPROM memory, no battery, easy to maintain MITSUBISHI FX3GA-60MT-CM.  The series transistor output (MT) of the PLC, can be output 2 100KHz pulse, direct drive servo or stepper motor. The series PLC can not be brought with the expansion module, but can be installed by the BD board to extend a small amount of I/O. The series 1N through the installation of BD series PLC board, can achieve RS232, RS485, RS422 communication MITSUBISHI FX3GA-60MT-CM. Max input / output points: 80 points. Supply voltage: 100 – 240VAC. Input points: 40 points. Output points: 40 points. Output type: silicon controlled. Power consumption: 40W. Weight (kg):1.2. Size (WxHxD) mm:285x90x87. Since the FX2n series have the following features: the maximum range of inclusive of the standard features, program execution faster, the full complement of communication function, suitable for different countries in the world, and the power to meet a large number of special function modules of individual needs, It can provide maximum flexibility and control capability for your factory automation applications. Control 16~256 point. Built in 8K capacity of the RAM memory, the maximum can be extended to 16K. CPU arithmetic processing speed of 0.08 S/ basic instructions. On the right side of the FX2N series can be connected to the input and output expansion modules and special function modules. The basic unit is built in the 2 axis independent maximum 20kHz positioning function (transistor output type). Quick disconnect the terminal block, which adopts excellent maintainability to quickly disconnect the terminal blocks, even if the cable is then replaced by the cable. Developed a range of special function modules to meet the needs of different – analog I/O, high speed counter. Positioning control to achieve the 16 axis, the pulse train output or for the J and K type thermocouple or Pt sensor developed the temperature module. A total of 8 special function modules can be configured for each FX2n main unit. Note recording function, Component annotation can be recorded in the program register. Online program editor, online change the program will not lose the working hours or stop production operation. RUN/STOP switch, running on panel / stop switch easy to operate. Remote maintenance, remote programming software can monitor, upload or uninstall programs and data via modem communications Password protecction, using a eight digit password to protect your program FX3GA-60MT-CM.  Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard. Continuous scanning function, to define the operation cycle for the application off the continuous scan time FX3GA-60MT-CM.  Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).
